For SaleIBC Totes
New 330 Gallon IBC Totes BALL VALVE UN APPROVED
Item Code: S010635
Quantity Available:
60
8 Totes, Minimum order

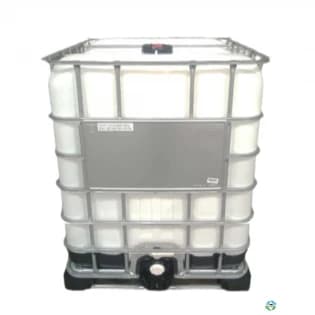

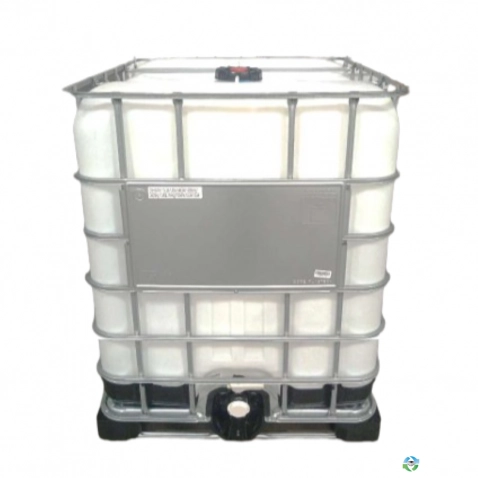

330 GALLON with QD BALL VALVE, UN APPROVED, UV STABILIZED HDPE INNER CONTAINER (IBC) with Composite pallet.
Filling opening: 6" (150 mm)
Material Galvanized Steel / Polyethylene high density
Outer container (Cage):
Surface coated steel tubes with special features against extreme vibration stress.
7 / 20 for 330 Gallon. Also two Restrain Bars are provided on top to support perfect
stability. The cage is replaceable. Large label plate made from galvanized steel is
push fitted with the cage members. option of different size of ID plate available.
Corner Protector: 4 pieces, PE‐HD, Black. Discharge valve has pilfer evident
sealing provision.
Filling opening : Filling Opening DN 150 with external thread, closed with Black screw cap with 2”
plug without vent and Red seal cap.
Discharge opening: 2" Ball Valve with Viton Gasket, discharge end sealed with PE/AL foil closed with
end cap.
Pallet: Frame type, composite pallet consists of G. I. ring and MS Sheet, supporting blocks
of the pallets are made of high quality PE. Provision of 4 way entry.
Steel / Plastic (PE)
PLEASE SPECIFY YOUR DESIRED LIDS AND VALVES

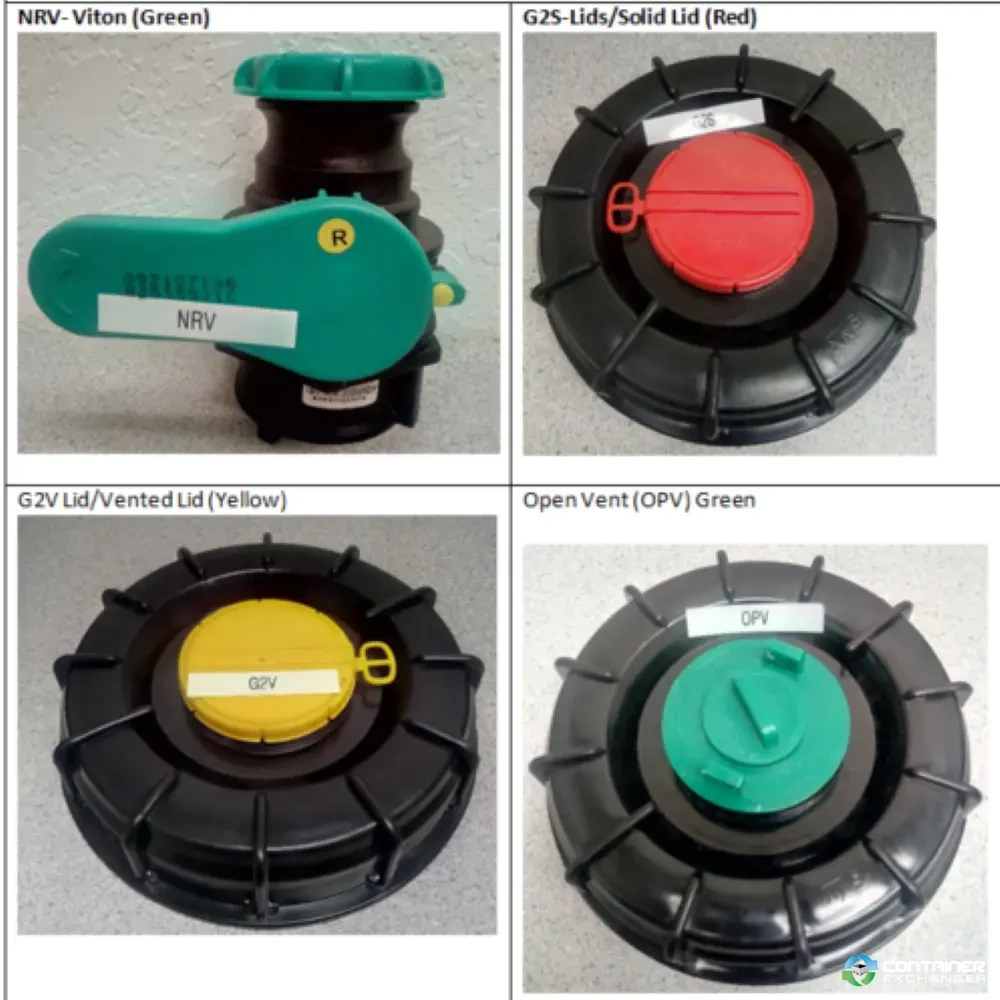

Lids available:
G2s -Lids/Solid lid (Red)
G2v lid/Vented Lid (Yellow)
Open Vent (OPV) Green

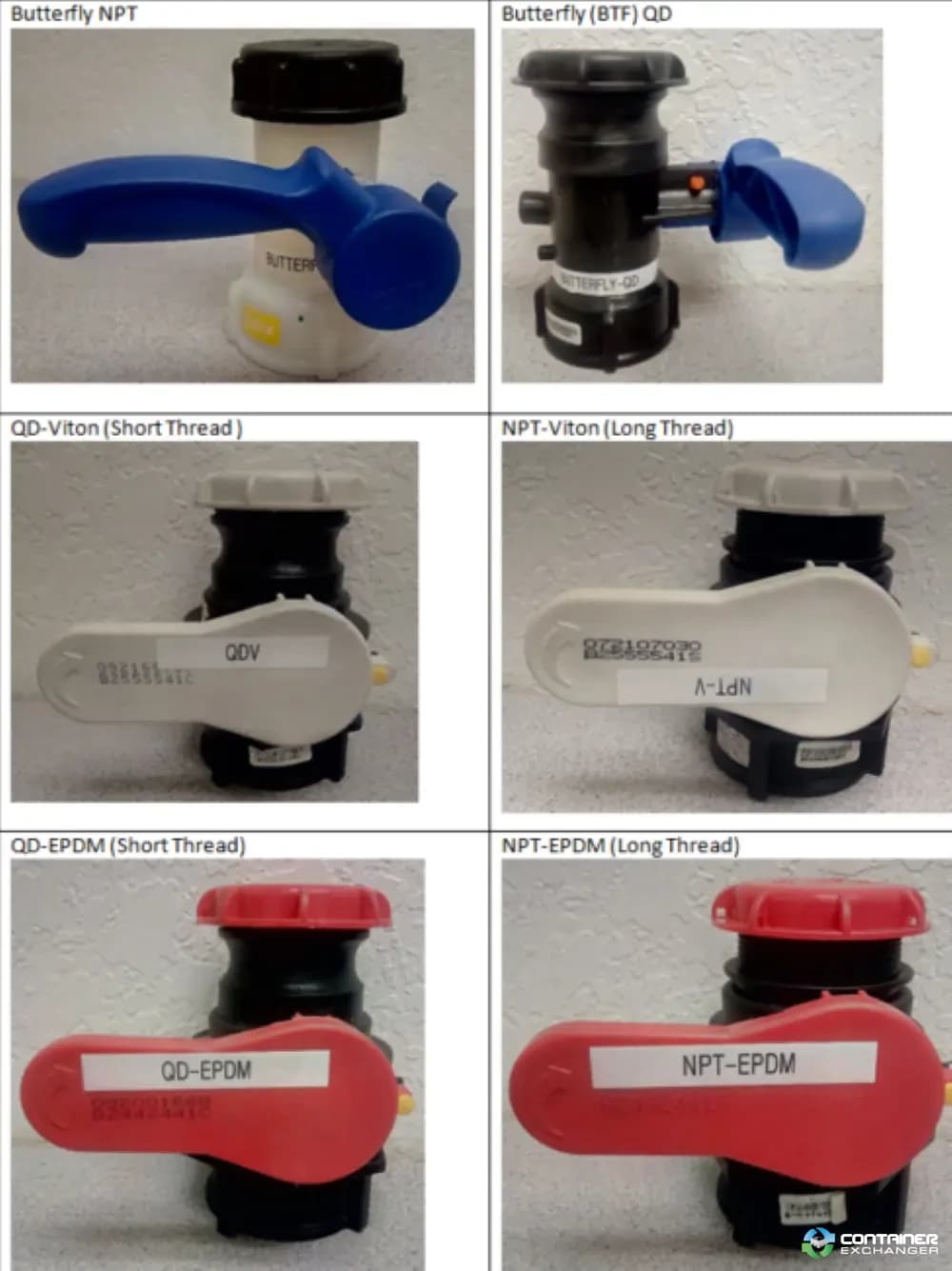

Valves available
NRV - Viton (Green)
Butterfly NPT
Butterfly (BTF) QD
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
See pictures for reference.
See more details330 GALLON with QD BALL VALVE, UN APPROVED, UV STABILIZED HDPE INNER CONTAINER (IBC) with Composite pallet.
Filling opening: 6" (150 mm)
Material Galvanized Steel / Polyethylene high density
Outer container (Cage):
Surface coated steel tubes with special features against extreme vibration stress.
7 / 20 for 330 Gallon. Also two Restrain Bars are provided on top to support perfect
stability. The cage is replaceable. Large label plate made from galvanized steel is
push fitted with the cage members. option of different size of ID plate available.
Corner Protector: 4 pieces, PE‐HD, Black. Discharge valve has pilfer evident
sealing provision.
Filling opening : Filling Opening DN 150 with external thread, closed with Black screw cap with 2”
plug without vent and Red seal cap.
Discharge opening: 2" Ball Valve with Viton Gasket, discharge end sealed with PE/AL foil closed with
end cap.
Pallet: Frame type, composite pallet consists of G. I. ring and MS Sheet, supporting blocks
of the pallets are made of high quality PE. Provision of 4 way entry.
Steel / Plastic (PE)
PLEASE SPECIFY YOUR DESIRED LIDS AND VALVES
Lids available:
G2s -Lids/Solid lid (Red)
G2v lid/Vented Lid (Yellow)
Open Vent (OPV) Green
Valves available
NRV - Viton (Green)
Butterfly NPT
Butterfly (BTF) QD
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
See pictures for reference.
$218.75
*minimums, price tiers listed below
*minimums, price tiers listed below
Specifications
Locations
iThis is the Ship From location for this item.
USA (Louisiana, Iowa)
Dimensions
iThese are the OVERALL DIMENSIONS of the item when fully assembled and ready for use.
48" x 40" x 53" (Length x Width x Height)
Condition
New Bottle
IBC Tote Capacity
iThe holding capacity of a single tote, in US Gallons.
330 Gallons
Previous Contents
iIn general, this is the type of contents that were previously held by these totes. Per FDA guidelines, only BRAND NEW TOTES can be considered as Food Grade for human consumption.
None, New Bottle
Pallet Type
iThe type of material used for the pallet base of the IBC Tote. Options are Wood, Plastic, and Metal.
Various
Weight
iThis is the weight per item, in pounds, not including any packing material or pallets (if required).
175 lbs.
Features
iA list of some common features that can be found or are available as an option on this item. If any feature is of critical importance, be sure you discuss the feature with your Container Exchanger sales rep, as the feature may not be standard and present on all items.
4-Way Entry
Typical Lead Time
iThe typical lead time required for the delivery of these items. Delivery & Shipping times vary, you can contact us for a more firm date, or place an order and we'll keep you updated on your order as it processes.
5 - 10 Days
Additional Information
8 Totes, Minimum order
330 GALLON with QD BALL VALVE, UN APPROVED, UV STABILIZED HDPE INNER CONTAINER (IBC) with Composite pallet.
Filling opening: 6" (150 mm)
Material Galvanized Steel / Polyethylene high density
Outer container (Cage):
Surface coated steel tubes with special features against extreme vibration stress.
7 / 20 for 330 Gallon. Also two Restrain Bars are provided on top to support perfect
stability. The cage is replaceable. Large label plate made from galvanized steel is
push fitted with the cage members. option of different size of ID plate available.
Corner Protector: 4 pieces, PE‐HD, Black. Discharge valve has pilfer evident
sealing provision.
Filling opening : Filling Opening DN 150 with external thread, closed with Black screw cap with 2”
plug without vent and Red seal cap.
Discharge opening: 2" Ball Valve with Viton Gasket, discharge end sealed with PE/AL foil closed with
end cap.
Pallet: Frame type, composite pallet consists of G. I. ring and MS Sheet, supporting blocks
of the pallets are made of high quality PE. Provision of 4 way entry.
Steel / Plastic (PE)
PLEASE SPECIFY YOUR DESIRED LIDS AND VALVES
Lids available:
G2s -Lids/Solid lid (Red)
G2v lid/Vented Lid (Yellow)
Open Vent (OPV) Green
Valves available
NRV - Viton (Green)
Butterfly NPT
Butterfly (BTF) QD
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
See pictures for reference.
330 GALLON with QD BALL VALVE, UN APPROVED, UV STABILIZED HDPE INNER CONTAINER (IBC) with Composite pallet.
Filling opening: 6" (150 mm)
Material Galvanized Steel / Polyethylene high density
Outer container (Cage):
Surface coated steel tubes with special features against extreme vibration stress.
7 / 20 for 330 Gallon. Also two Restrain Bars are provided on top to support perfect
stability. The cage is replaceable. Large label plate made from galvanized steel is
push fitted with the cage members. option of different size of ID plate available.
Corner Protector: 4 pieces, PE‐HD, Black. Discharge valve has pilfer evident
sealing provision.
Filling opening : Filling Opening DN 150 with external thread, closed with Black screw cap with 2”
plug without vent and Red seal cap.
Discharge opening: 2" Ball Valve with Viton Gasket, discharge end sealed with PE/AL foil closed with
end cap.
Pallet: Frame type, composite pallet consists of G. I. ring and MS Sheet, supporting blocks
of the pallets are made of high quality PE. Provision of 4 way entry.
Steel / Plastic (PE)
PLEASE SPECIFY YOUR DESIRED LIDS AND VALVES
Lids available:
G2s -Lids/Solid lid (Red)
G2v lid/Vented Lid (Yellow)
Open Vent (OPV) Green
Valves available
NRV - Viton (Green)
Butterfly NPT
Butterfly (BTF) QD
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - Viton (Short Thread)
NPT - Viton (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
QD - EPDM (Short Thread)
NPT - EPDM (Long Thread)
See pictures for reference.
